品牌:MARK-10     产地:美国

供应商:深圳市银飞电子科技有限公司

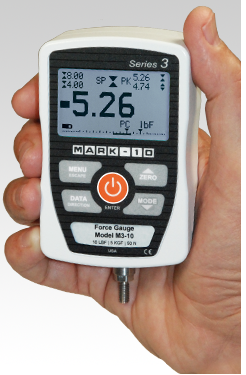

Series 3 digital force gauges are designed for tension and compression force testing in numerous applications from 0.12 lbF to 500 lbF (0.5 N to 2500 N). The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. A backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output is provided for data collection purposes.

Set point indicators are provided for pass-fail testing. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.MARK-10先进的3系列数字推拉力计

An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with Mark-10 test stands, grips, and software.

The gauges include MESUR™ Lite data acquisition software. MESUR™ Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.MARK-10先进的3系列数字推拉力计

Features:MARK-10先进的3系列数字推拉力计

• High-speed 2,000 Hz sampling rate
• USB data output of continuous or individual data points
• Ultra-compact size

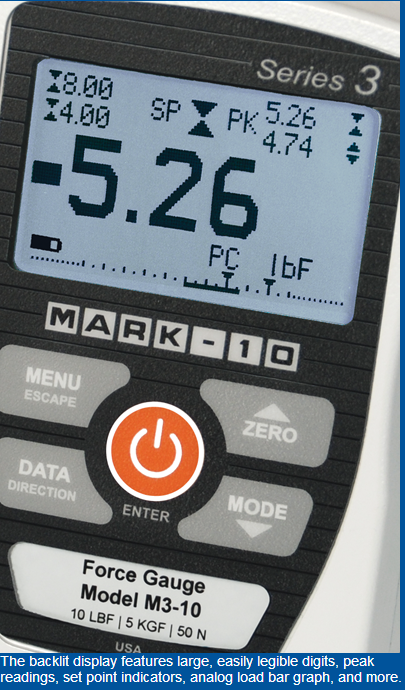

• Large backlit graphic display
• Programmable set points with pass/fail indicators
• Live load bar graph with set point markers
• Peak readings and set points always displayed
• 3 selectable units of measurement
• Configurable audio alarms and key tones

该产品由深圳市银飞电子科技有限公司提供,销售商地址位于深圳市南山区前海路振业国际商务中心1206。请您仔细阅读产品使用说明书,正确使用。

银飞电子主要销售通讯设备、仪器仪表、电力设备、热工仪表、校准设备及工具配件。
