LTCM-100材料力学测试仪

LTCM-100 Series Motorized Force Tester

The CHATILLON® LTCM100 Series is an economical, motorized tester optimized for product floor operation. When combined with a Chatillon DF Series digital force gauge, it provides users with an easy-to-use testing system for tensile, compression, peel and flexural testing applications.LTCM-100材料力学测试仪

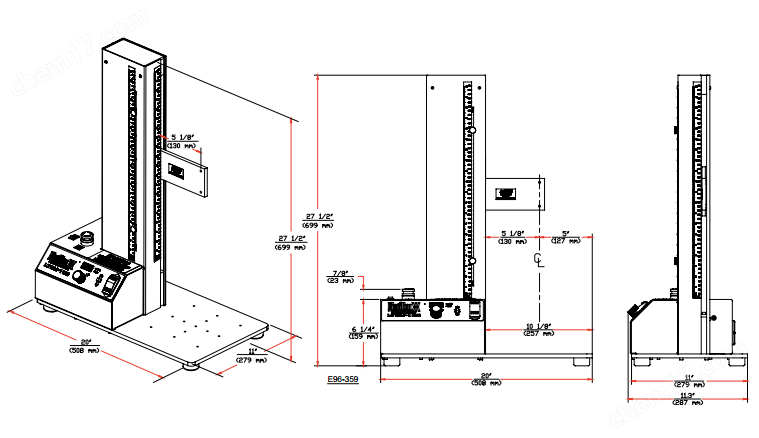

The LTCM100 Series features a large working area and 5-inch (130mm) throat ideal for large sample sizes. The base features pre-drilled holes for fitting fixtures and specialized testing jigs. Crosshead travel is controlled from a simple console or using an optional footswitch controller. Crosshead travel extends to 15 inches (380mm). Speed may be set from 0.2 to 20 in/min or 5 to 500 mm/min. A digital display indicates the travel speed during a test. The return speed may be configured to automatically return at maximum speed. Mechanical deflection limits, located on the column face can be used to set travel limit setpoints. The crosshead will stop when either the upper or lower deflection limit is contacted.

The LTCM100 Series is supplied with a hook and compression plate and certificate of conformance.

Features

• Tensile, Compression, Peel & Flexural Testing
• Compact, Lightweight, Benchtop Design
• Simple Operation

    - Console Controls for Speed & Travel

    - Optional Footswitch Control

    - Independent Return Speed

• Mechanical Deflection Limits
• Digital Load Limits (with Chatillon DF Gauge)
• Large Working Area
• 2 Year Warranty

Specifications

•   Load Capacity:  110 lbf, 500 N
• Crosshead Speed:  0.2 to 20.0 in/min
•                 5 to 500 mm/min
•    Return Speed:  20 in/min, 500mm/min
•  Speed Accuracy:  +3% Unloaded
•   Travel Distance:  15 inches (380mm)
•          Power:  110/230V Switchable
• Load Measurement:  Chatillon DF Gauges
• Operating Temperature:  40°F to 110°F  5°C to 45°C
• Instrument Weight:   39 lbs (18 kg)
•   Shipping Weight:   50 lbs (23 kg)

Features

• Easy Operation

The LTCM-100 console controls are intuitive and easy to use. Users can specify speed in either inches per minute or millimeters per minute. The speed control knob is used to adjust speed from 0.2 to 20.0 in/min or 0.5 to 500 mm/min. Speed accuracy is better than 3%. The Up and Down key is used to control crosshead direction.

• Independent Return Speed

A separate return speed switch can be positioned so that the crosshead returns to zero at maximum speed or at the speed indicated by the display.

• Adjustable Deflection Limits

Deflection limit switches are supplied on the front of the column. The column contains increments in inches and millimeters for positioning the limit switches and for measuring sample deflection. Position and “lock-in” a High and Low deflection limit to protect your gauge from overload conditions or for ending your test at a distance traveled. The crosshead travels up to 15-inches (380mm).

• Easy Operation

The LTCM-100 console controls are intuitive and easy to use. Users can specify speed in either

inches per minute or millimeters per minute. The speed control knob is used to adjust speed from 0.2 to 20.0 in/min or 0.5 to 500 mm/min. Speed accuracy is better than 3%. The Up and Down key is used to control crosshead direction.

• Independent Return Speed

A separate return speed switch can be positioned so that the crosshead returns to zero at maximum speed or at the speed indicated by the display.

• Adjustable Deflection Limits

Deflection limit switches are supplied on the front of the column. The column contains increments in inches and millimeters for positioning the limit switches and for measuring sample deflection. Position and “lock-in” a High and Low deflection limit to protect your gauge from overload conditions or for ending your test at a distance traveled. The crosshead travels up to 15-inches (380mm).

• Crosshead Travel Extension

The optional crosshead travel extension arm can be used when testing very elastic samples. This

accessory adds an additional 15-inches (380mm) of travel for your sample.

Ordering
