Chatillon DG-300机械测力计

DG Series Mechanical Force Gauge

The CHATILLON® DG Series mechanical force gauge is ideal for a wide range of force testing applications up to 500 lbf (2.5 kN). Based on our popular DPPH Series force gauge, the DG Series features a larger, 2.25-inch dial for improved resolution and readability, peak hold button, durable plastic housing, universal mounting plate, ergonomic shape and improved accuracy of +0.5% of full scale. The DG gauge is an excellent, economical solution for tensile or compression testing. Chatillon DG-300机械测力计
The DG Series may be used as a hand-held device or equipped with an optional handle set for two-hand operation. It is ideal for test stand applications,and when combined with the MT500 Series mechanical test stand, offers you a versatile, economic test system with a capacity of up to 500 lbf (2.5 kN).

The DG Series features an an easy to read concentric dial that measures clockwise only. Dial rotates 360-degrees for taring. A peak hold switch captures peak readings and can be easily and quickly returned to zero. A mechanical overload feature protects the gauge from damage. Available in lbf, kgf or N units of measure. DG Series gauges come complete with protective carrying case and a set of stainless steel attachments. A Certificate of Calibration with NIST Data is supplied standard.

Features

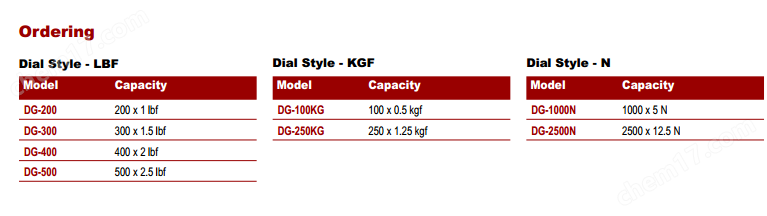

n Three Graduation Styles
 - LBF
 - KGF
 - Newtons
n Tensile (Pull) and Compression (Push) Testing
n Peak Load Switch
n Tare Ring
n Intrinsically Safe
n NIST Calibration with Data
n 2 Year Warranty  Chatillon DG-200机械测力计

Specifications
Accuracy: +0.5% of Full Scale
Overload Capacity: 110% of Rated Capacity
Maximum Overload: 150% of Rated Capacity
Tare Capacity: 10% of Rated Capacity
Dial Resolution: 0.5% of Full Scale
Deflection (Full Scale): 10mm (.394 inches)
Operating Temperature: 40°F to 110°F
 5°C to 45°C
Instrument Weight: 4.7 lbs (0.68 kg)
Shipping Weight: 8.4 lbs (3.80 kg)
