LTCM-500材料力学测试台的详细资料

LTCM-500材料力学测试台

Declaration of Conformity

A sample of this product has been accessed against the essential health and safety requirements of the Low Voltage and the EMC Directives listed. Based on conformity with the listed directives， this product is deemed in compliance with the following：
 - BS EN 61010-1：2010 Safety Requirements for Electrical Equipment
 - BS EN 61326-1：2006 Electrical equipment for measurement， control and laboratory use; General Requirements

Precautions

? Read the instruction manual compley before attempting to use the LTCM Series. By following the instructions contained in this manual， the optimum accuracy and performance can be attained.Never operate the LTCM Series with the cover off.Verify Input Power Source BEFORE operation. The LTCM Series has a switchable power supply. The tester may operate with 115V or 230V provided the Power Input Module is in the proper setting corresponding to the source power. Always make sure that the supply power matches the setting on the Power Input Module before turning power ON. Failure to do so may cause serious damage to the tester.LTCM-500材料力学测试台
? The LTCM Series has a moving crosshead! Exercise extreme caution during testing or whenever the crosshead is moving. Never place
fingers inside the column.
? Use Chatillon force gauges. The LTCM Series is designed to be used safely with the Chatillon force gauges listed in this manual.
? Class 1 product must be connected to a mains socket outlet with a protective earth connection.
? Place LTCM Series so that it is easy to access the power cord.
? Never use the LTCM Series in a manner not specified by AMETEK.
? Only use safety approved power cords that are supplied with the LTCM Series test machines.

Precautions

? Read the instruction manual compley before attempting to use the LTCM Series. By following the instructions contained
in this manual， the optimum accuracy and performance can be attained.
? Never operate the LTCM Series with the cover off.
? Verify Input Power Source BEFORE operation. The LTCM Series has a switchable power supply. The tester may operate with 115V or
230V provided the Power Input Module is in the proper setting corresponding to the source power. Always make sure that the supply power matches the
setting on the Power Input Module before turning power ON. Failure to do so may cause serious damage to the tester.
? The LTCM Series has a moving crosshead! Exercise extreme caution during testing or whenever the crosshead is moving. Never place
fingers inside the column.
? Use Chatillon force gauges. The LTCM Series is designed to be used safely with the Chatillon force gauges listed in this manual.
? Class 1 product must be connected to a mains socket outlet with a protective earth connection.
? Place LTCM Series so that it is easy to access the power cord.
? Never use the LTCM Series in a manner not specified by AMETEK.
? Only use safety approved power cords that are supplied with the LTCM Series test machines.

Precautions

? Read the instruction manual compley before attempting to use the LTCM Series. By following the instructions contained
in this manual， the optimum accuracy and performance can be attained.
? Never operate the LTCM Series with the cover off.
? Verify Input Power Source BEFORE operation. The LTCM Series has a switchable power supply. The tester may operate with 115V or
230V provided the Power Input Module is in the proper setting corresponding to the source power. Always make sure that the supply power matches the
setting on the Power Input Module before turning power ON. Failure to do so may cause serious damage to the tester.
? The LTCM Series has a moving crosshead! Exercise extreme caution during testing or whenever the crosshead is moving. Never place
fingers inside the column.
? Use Chatillon force gauges. The LTCM Series is designed to be used safely with the Chatillon force gauges listed in this manual.
? Class 1 product must be connected to a mains socket outlet with a protective earth connection.LTCM-500力学测试台

? Place LTCM Series so that it is easy to access the power cord.
? Never use the LTCM Series in a manner not specified by AMETEK.
? Only use safety approved power cords that are supplied with the LTCM Series test machines.

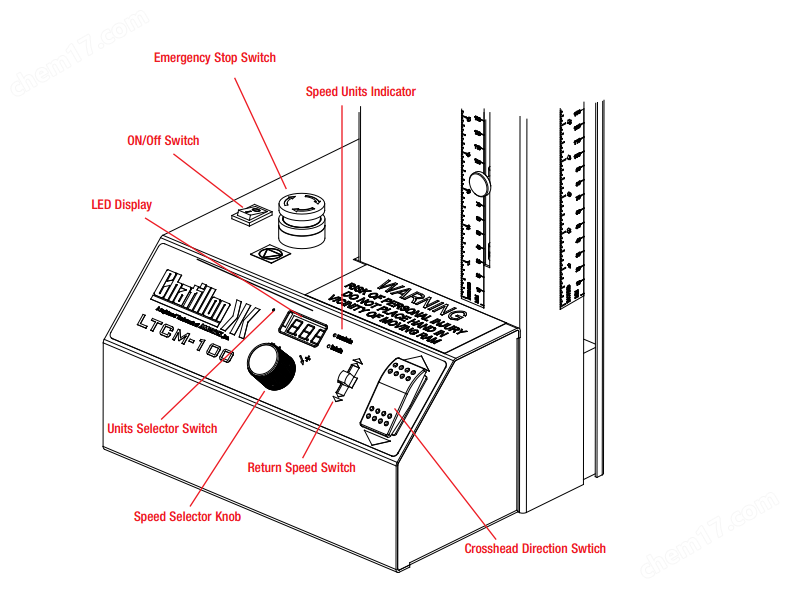

Console Overview
The LTCM Series provides these functions on the tester’s console：
? On/Off Switch
? Emergency Stop Switch
? Speed Units of Measure Selector Switch
? Speed Selector Knob
? Return Speed Switch
? Crosshead Direction of Travel Switch
? LED Display
? Speed Units Indicator
